Industrial Grounding Excellence
Precision
Earthing Rods
Engineering high-durability grounding solutions to protect electrical assets and ensure safe fault current dissipation.
Copper Bonded
Earth Rod
Technical Specification
Our standard Copper Bonded Earth Rods are designed for high-performance grounding in varied soil conditions. Manufactured by molecularly bonding 99.9% pure electrolytic copper onto a high-tensile steel core, these rods provide the structural strength for deep driving and the electrical conductivity of solid copper.
- High Tensile Strength for Hard Soils
- Molecularly Bonded Anti-Corrosive Coating
- Low Impedance Current Path
| Model | Length. Mtr. | ROD DIA (min) mm |
|---|---|---|
| DOK14 | 1,2&3 | 14 |
| DOK16 | 1,2&3 | 16 |
| DOK19 | 1,2&3 | 19 |

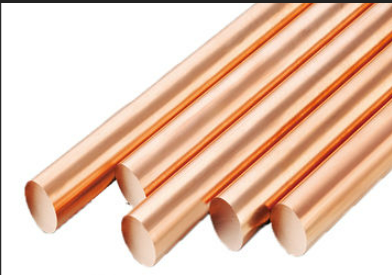

Pure Solid
Copper Earth Rod
Ultimate Conductivity
For mission-critical infrastructure like data centers and power substations, the Pure Copper Earth Rod is the premium choice. These rods are fabricated from solid electrolytic grade copper, offering the highest level of corrosion resistance even in aggressive chemical environments and the fastest dissipation of fault currents.
- 100% Electrolytic Solid Copper
- Unmatched Lifetime Durability
- Best for Highly Corrosive Soil
| Model | Length. Mtr. | ROD DIA (min) mm |
|---|---|---|
| CDOK14 | 1,2&3 | 14 |
| CDOK16 | 1,2&3 | 16 |
| CDOK19 | 1,2&3 | 19 |
4g Copper Bonded
Earth Rod
Enhanced Protection
The 4g series Copper Bonded Earth Rod is engineered for extra-deep grounding requirements. With a thicker copper layer and reinforced core, it is designed to meet the latest global standards for industrial protection. It ensures a stable ground reference for advanced telecommunication and 4G/5G network infrastructure.
- Enhanced Copper Thickness (250 Microns+)
- Optimized for Telecom Towers
- High Fault Current Handling

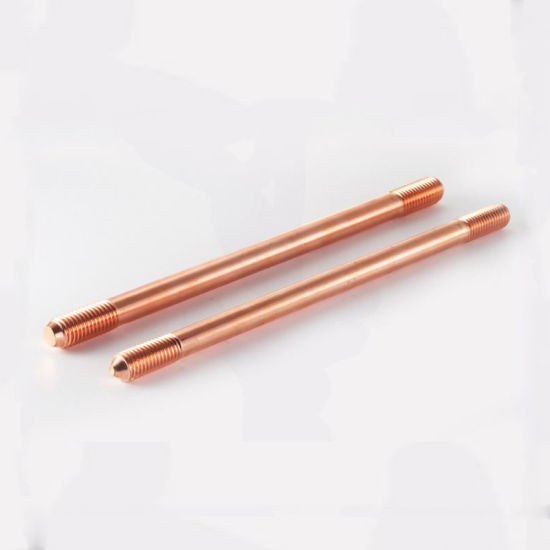

Copper Bonded
Threaded Rod
Modular Grounding
Threaded rods offer a modular approach to grounding, allowing multiple rods to be joined using high-strength couplers. This is ideal for reaching low resistivity layers deep underground. The threads are cold-rolled after the copper bonding process to ensure a perfect fit and continuous electrical path.
- Cold-Rolled Threads for Integrity
- Extendable via Coupling Systems
- Uniform Copper Coating throughout Threads
| Model | Length. Mtr. | ROD DIA (min) mm |
|---|---|---|
| CTDOK14 | 1,2&3 | 14 |
| CTDOK16 | 1,2&3 | 16 |
| CTDOK19 | 1,2&3 | 19 |
